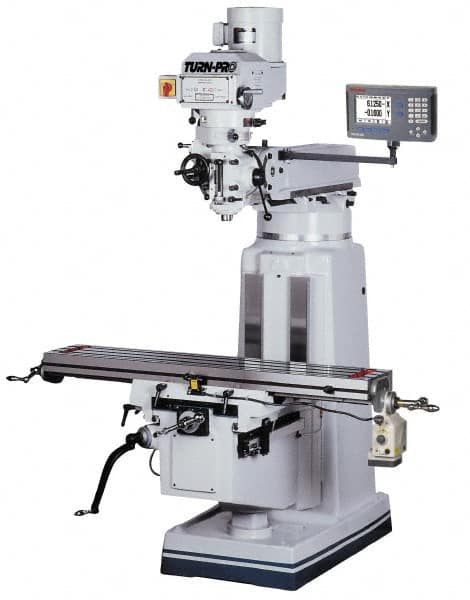

Value Collection - 9 x 49" 3 hp 220/440V 220V Variable Speed Pulley Control 3 Phase Knee Milling Machine
Item #: 87788121
Brand: Value Collection
Model #:
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Horsepower (HP) | 3.00 |
| Phase | 3 |
| Voltage | 220/440; 220 |
| Longitudinal Travel (Decimal Inch) | 35.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Decimal Inch) | 16.5000 |
| Minimum Spindle Speed (RPM) | 70.00 |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Spindle Taper Size | R8 |
| Number of Spindle Speeds | Variable |
| Spindle Travel Length (Inch) | 5 |
| Quill Diameter (mm) | 85.73 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Minimum Spindle to Table Distance (Inch) | 0 |
| Maximum Spindle to Table Distance (Inch) | 18-5/16; 18-15/16 |
| Minimum Spindle to Column Distance (Decimal Inch) | 5.0000 |
| Maximum Spindle To Column Distance (Inch) | 20 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Decimal Inch) | 12.0000 |
| Ram Turret Swivel (Degrees) | 360.00 |
| Overall Length (Inch) | 55 |
| Overall Height (Inch) | 85 |
| Overall Depth (Inch) | 59 |
