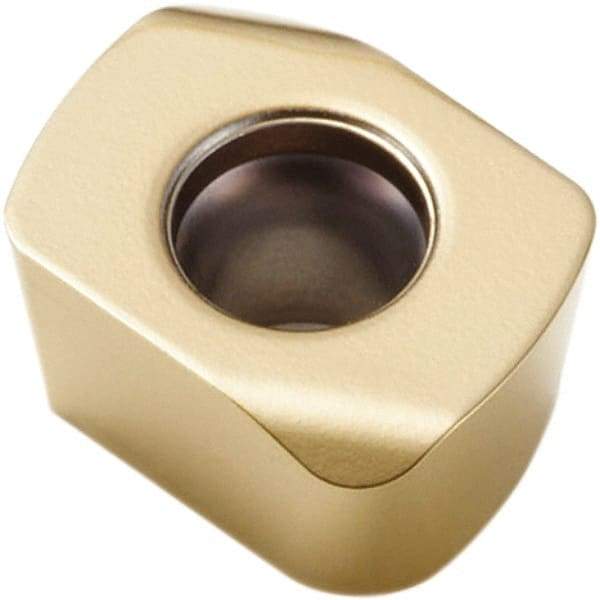

Seco - LPHW05T210 Grade MH1000 Carbide Milling Insert - TiAlN Finish, 1/8" Thick, 1/4" Inscribed Circle
Item #: 52817095
Brand: Seco
Model #: 84122
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPHW |
| Insert Size | 05T210 |
| Material | Carbide |
| Manufacturer's Grade | MH1000 |
| Coating | TiAlN |
| Width (Inch) | 1/4 |
| Width (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Shape | Rectangle |
| ISO Number | LPHW05T210TR-MD05 |
