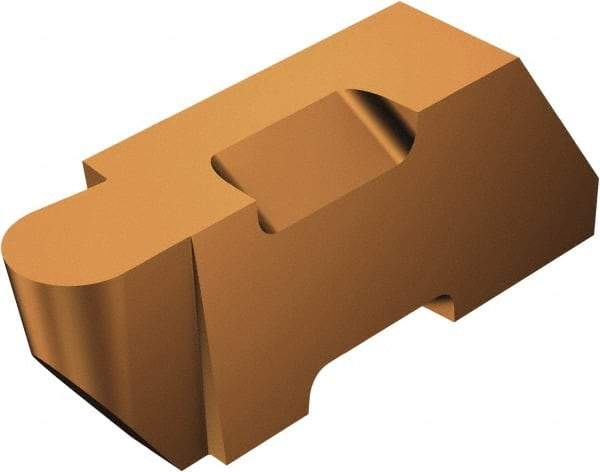

Sandvik Coromant - 3LTLR TLR 3.96mm Cutting Width Carbide Grooving Insert - 3.81mm Max Depth of Cut, Left Hand, 1.98mm Corner Radius, TiAlN Finish
Item #: 52803269
Brand: Sandvik Coromant
Model #: 5753411
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLR |
| Insert Size | 3L |
| Material | Carbide |
| Cutting Width (mm) | 3.96 |
| Cutting Width (Decimal Inch) | 0.1560 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Chipbreaker | TLR |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0780 |
| Corner Radius (mm) | 1.98 |
| Corner Radius (Decimal Inch) | 0.0780 |
| Coating Process | PVD |
| Series | Top Lok |
| Rake | Positive |
| ISO Number | TLR-3078L 1125 |
| Manufacturers Catalog Number | TLR-3078L 1125 |
| Overall Width (Decimal Inch) | 0.1560 |
| Insert Thickness (Decimal Inch) | 0.3440 |
