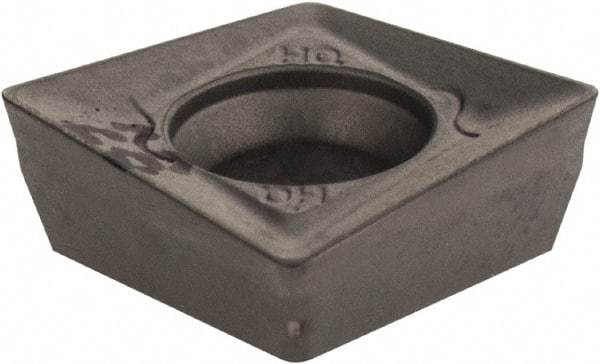

Iscar - XPMT100408 HQ Grade IC28 Carbide Milling Insert - Uncoated, 0.1622" Thick, 0.4016" Inscribed Circle, 0.6mm Corner Radius
Item #: 52745973
Brand: Iscar
Model #: 5601222
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4016 |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness (Decimal Inch) | 0.1622 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Relief Angle | 11.000 |
| Shape | Square |
| Chipbreaker | HQ |
| ISO Number | XPMT 100408-HQ |
