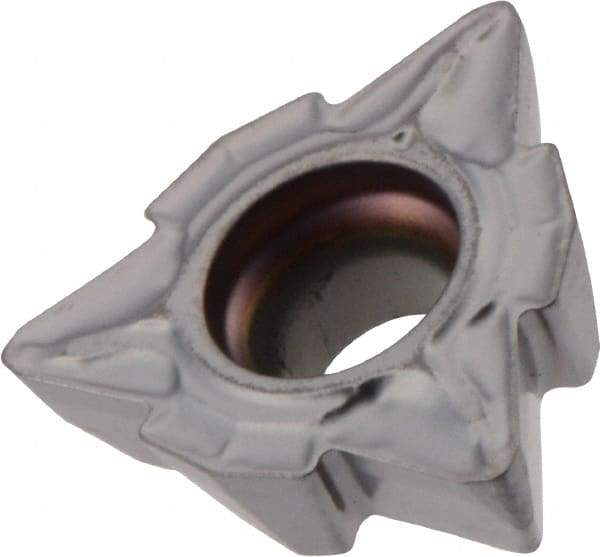

Iscar - WOLH31 SW Grade IC328 Carbide Indexable Drill Insert - TiCN Finish, Trigon, 10mm Inscribed Circle
Item #: 52745304
Brand: Iscar
Model #: 5503255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | WOLH |
| Insert Size | 31 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 3.81 |
| Thickness (Decimal Inch) | 0.1500 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 6.00 |
| Length (Decimal Inch) | 0.2362 |
| Included Angle | 80 |
| Coating | TiCN |
| Coating Process | PVD |
| Chipbreaker | SW |
