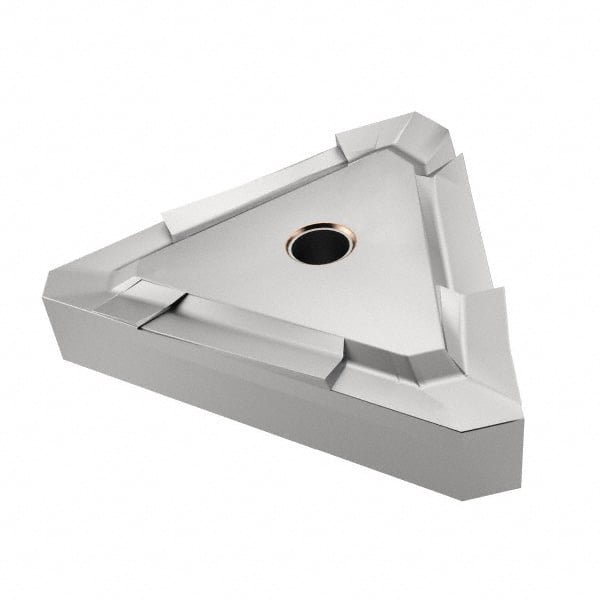

TPKR 43PDTR-HS IC328 Carbide Milling Insert TiCN Finish, 0.8661″ Long x 0.1874″ Thick
Item #: 52740925
Brand: Iscar
Model #: 5667621
Product Specifications
| Insert Style | TPKR |
| Insert Size Code | 43 |
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C5; C6; C2 |
| Manufacturer Grade | IC328 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Series | ISCARMILL |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | TPKR 43PDTR-HS |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | TPKR 43PDTR-HS |
| Chip Breaker | HS |
| Shape | Triangle |
| Coating/Finish | Coated |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Length (Decimal Inch - 4 Decimals) | 0.8661 |
