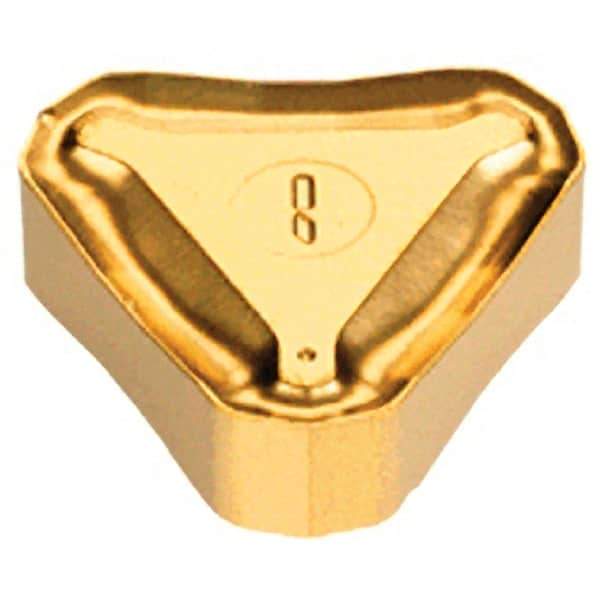

Iscar - TNMF43 LM Grade IC910 Carbide Milling Insert - AlTiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 2.11mm Corner Radius
Item #: 52739117
Brand: Iscar
Model #: 5601903
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMF |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Length (Decimal Inch) | 0.4220 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0830 |
| Corner Radius (mm) | 2.11 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Chipbreaker | LM |
| Manufacturers Catalog Number | TNKF 43AN-LM |
