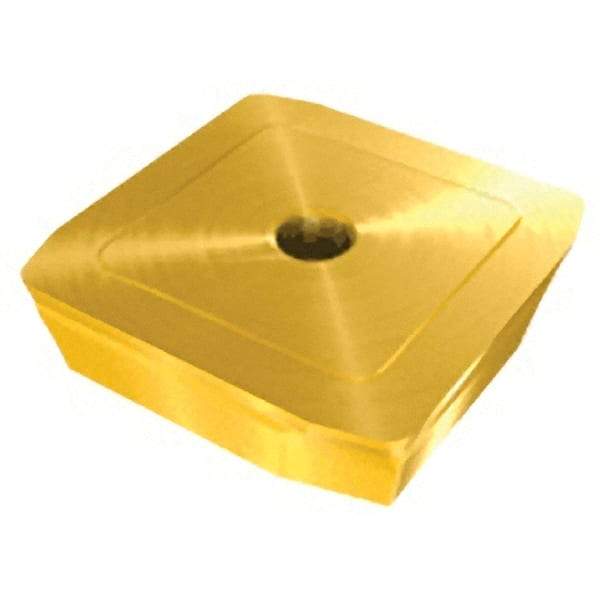

Iscar - SPKN53 42 Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1874" Thick, 5/8" Inscribed Circle
Item #: 52736030
Brand: Iscar
Model #: 5601728
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPKN |
| Insert Size | 53 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness (Decimal Inch) | 0.1874 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | 42 |
| Manufacturers Catalog Number | SPK 53ED-TR-42 |
