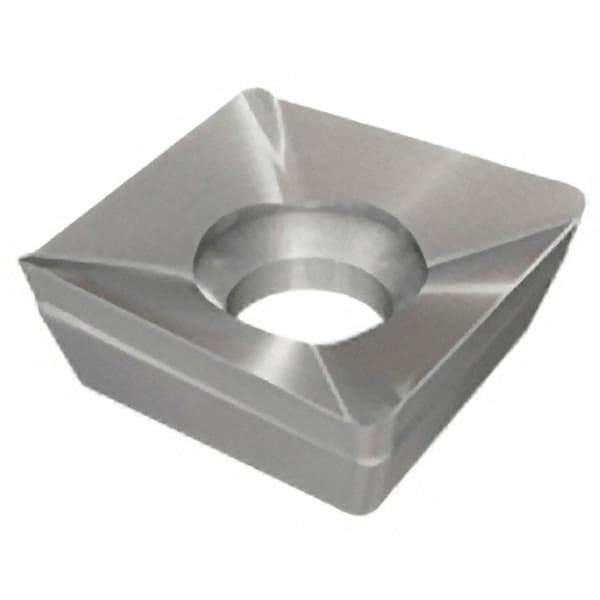

Iscar - SOMT060204 HQ Grade IC30N Carbide Milling Insert - Uncoated, 0.1008" Thick, 0.2425" Inscribed Circle, 0.4mm Corner Radius
Item #: 52735800
Brand: Iscar
Model #: 5601469
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 060204 |
| Material | Carbide |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.2425 |
| Thickness (Decimal Inch) | 0.1008 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | HQ |
| ISO Number | SOMT 060204TR-HQ |
