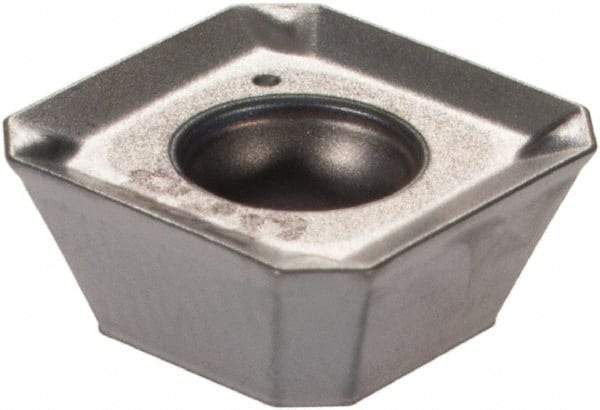

Iscar - SEKT09T3 N Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1654" Thick, 0.378" Inscribed Circle
Item #: 52732823
Brand: Iscar
Model #: 5601407
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEKT |
| Insert Size | 09T3 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Thickness (Decimal Inch) | 0.1654 |
| Relief Angle | 20.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | N |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Manufacturers Catalog Number | SEKT 09T3 AF-N |
