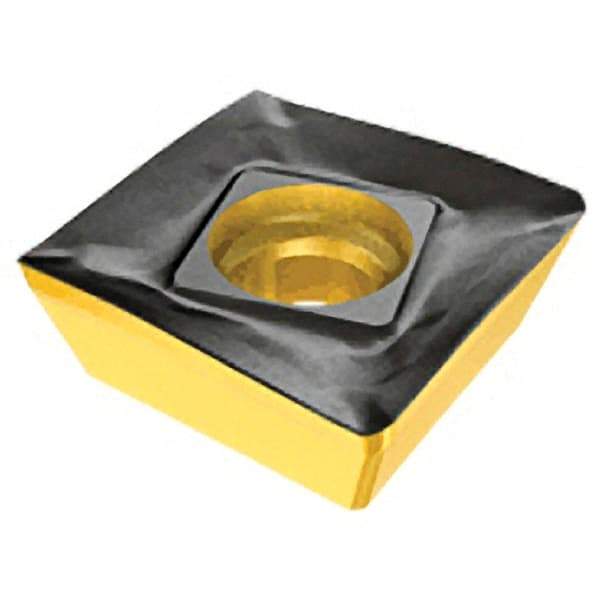

Iscar - SDMT1606 HQ Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2559" Thick, 0.6457" Inscribed Circle, 0.8mm Corner Radius
Item #: 52732187
Brand: Iscar
Model #: 5601157
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMT |
| Insert Size | 1606 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.6457 |
| Thickness (Decimal Inch) | 0.2559 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | HQ |
| ISO Number | SDMT 1606PDR-HQ |
