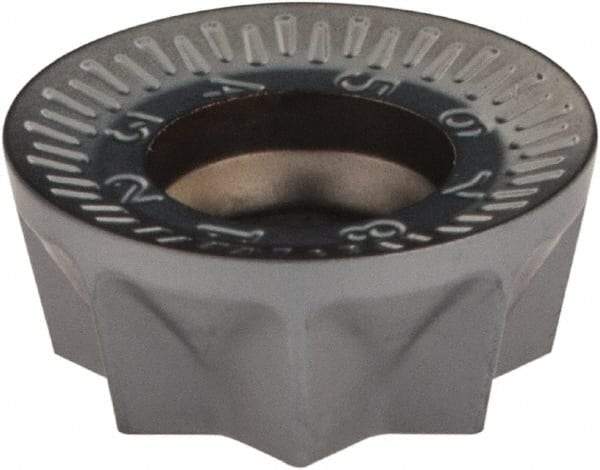

Iscar - R90MT1205 RM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1969" Thick, 12mm Inscribed Circle
Item #: 52730819
Brand: Iscar
Model #: 5602116
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R90MT |
| Insert Size | 1205 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Decimal Inch) | 0.1969 |
| Coating Process | PVD |
| Shape | Round |
| Chipbreaker | RM |
| ISO Number | R90MT 1205-RM |
