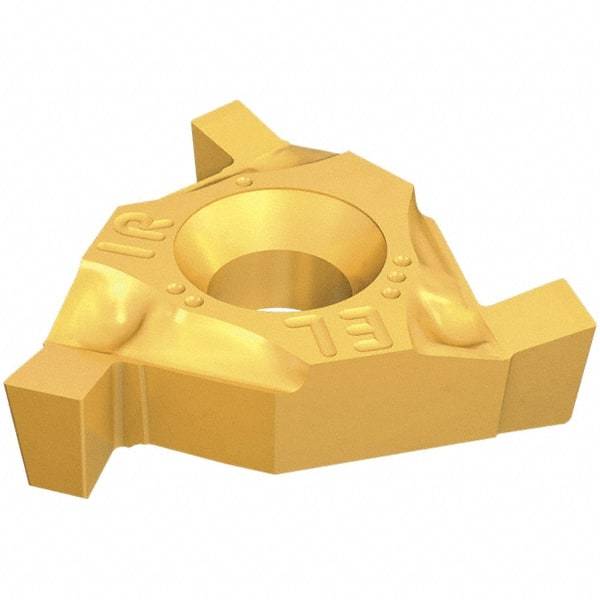

Iscar - GTGA16 Grade IC508, 1.95mm Cutting Width, Double End, Carbide Grooving Insert - TiCN/TiN Finish, 2mm Depth of Cut, External Right Hand & Internal Left Hand, 0.1mm Corner Radius
Item #: 52718228
Brand: Iscar
Model #: 3355057
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GTGA |
| Insert Size | 16 |
| Material | Carbide |
| Cutting Width (mm) | 1.95 |
| Cutting Width (Decimal Inch) | 0.0770 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC508 |
| Coating | TiCN/TiN |
| Insert Hand | External Right Internal Left |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Series | Cut Grip |
| ISO Number | GTGA 16ER/IL 195 IC508 |
| Manufacturers Catalog Number | 3355057 |
| Overall Width (mm) | 1.95 |
| Overall Width (Decimal Inch) | 0.0768 |
