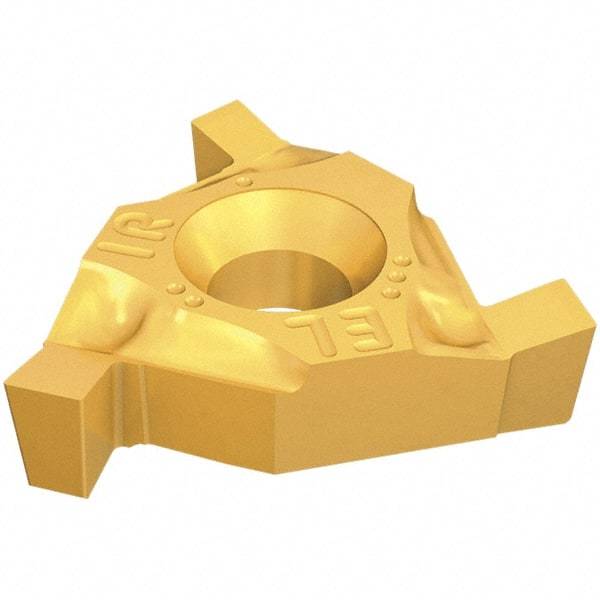

Iscar - 16ER/IL100GTGA Grade IC528, 1mm Cutting Width Carbide Grooving Insert - 1.55mm Max Depth of Cut, Left Hand, 0.1mm Corner Radius, TiCN/TiN Finish
Item #: 52718152
Brand: Iscar
Model #: 6411107
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GTGA |
| Insert Size | 16ER/IL100 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.55 |
| Maximum Depth of Cut (Decimal Inch) | 0.0610 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Series | Cut Grip |
| Overall Width (mm) | 1.00 |
| Overall Width (Decimal Inch) | 0.0394 |
