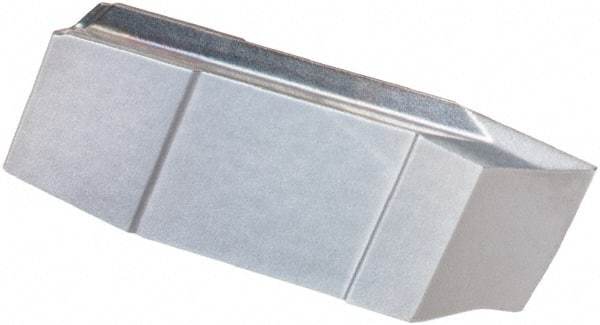

Iscar - 235A46GIPM Grade IC328, 0.093" Cutting Width Carbide Grooving Insert - 0.99mm Max Depth of Cut, Neutral, 0.002" Corner Radius, TiCN Finish
Item #: 52717204
Brand: Iscar
Model #: 6498647
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPM |
| Insert Size | 235A46 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0930 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| Rake Angle | 6 |
| Rake | Positive |
