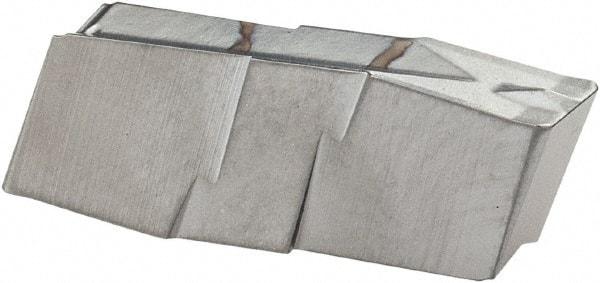

Iscar - 400040GIP E Grade IC328, 4mm Cutting Width Carbide Grooving Insert - 2.4mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiCN Finish
Item #: 52716545
Brand: Iscar
Model #: 6402089
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 400040 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | E |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
