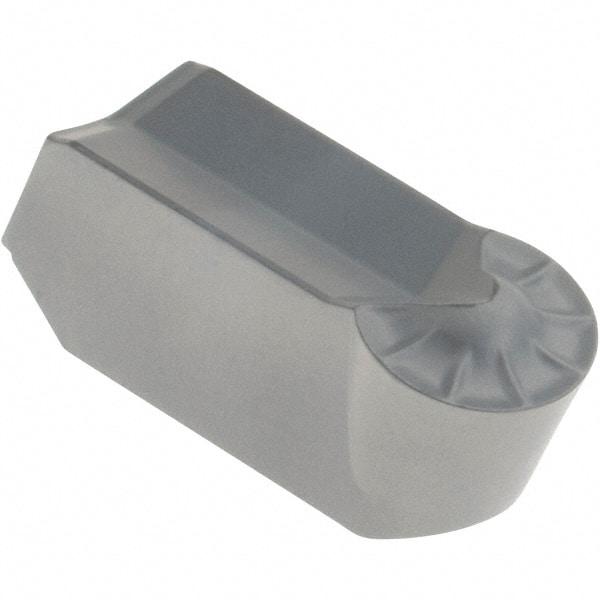

Iscar - 635318GIMY Grade IC20, 6.35mm Cutting Width Carbide Grooving Insert - 3.1mm Max Depth of Cut, Neutral, 3.18mm Corner Radius, Uncoated
Item #: 52715620
Brand: Iscar
Model #: 6401906
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMY |
| Insert Size | 635318 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 3.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.1220 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Corner Radius (mm) | 3.18 |
| Corner Radius (Decimal Inch) | 0.1252 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 6.35 |
| Overall Width (Decimal Inch) | 0.2500 |
