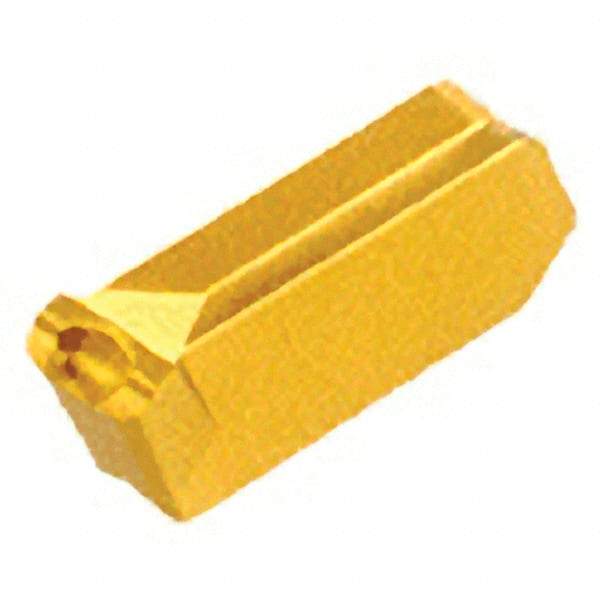

Iscar - 46GIM Grade IC656, 4.6mm Cutting Width Carbide Grooving Insert - Neutral, 0.6mm Corner Radius, TiC/TiN Finish
Item #: 52715042
Brand: Iscar
Model #: 6401909
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 46 |
| Material | Carbide |
| Cutting Width (mm) | 4.60 |
| Cutting Width (Decimal Inch) | 0.1811 |
| Manufacturer's Grade | IC656 |
| Coating | TiC/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling; Parting |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Coating Process | CVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 4.60 |
| Overall Width (Decimal Inch) | 0.1811 |
