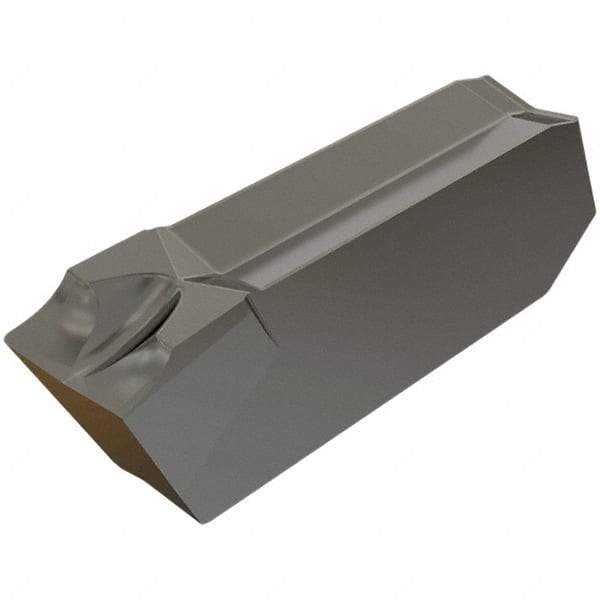

Iscar - GIM3 JS IC328 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 15° Left Hand Lead Angle, 0.0008" Cnr Rad, TiN/TiCN/TiN Coated, Single End
Item #: 52714961
Brand: Iscar
Model #: 6402032
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GIM |
| Insert Size | 3 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | P45-K40 |
| Manufacturer's Grade | IC328 |
| Coating | TiN/TiCN/TiN |
| Series | Cut-Grip |
| Relief Angle | 7 |
| Chipbreaker | JS |
| Full Radius | No |
| Multi-Use Application | Slitting |
| Coating Process | PVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Corner Radius (Decimal Inch) | 0.0008 |
| Corner Radius (mm) | 0.02 |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | GIM 3JS-15LA |
