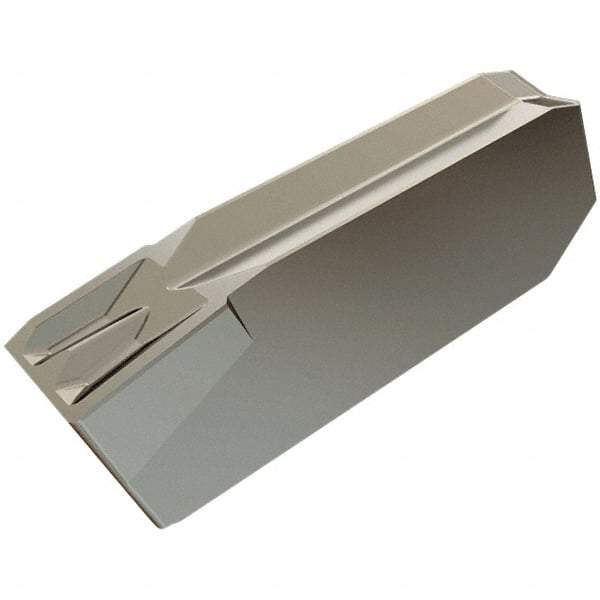

Iscar - GIM3-4 Grade IC354, 3mm Cutting Width, Double End, Carbide Grooving Insert - TiCN Finish, Left Hand, 0.2mm Corner Radius
Item #: 52714805
Brand: Iscar
Model #: 3355054
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 3-4 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | P40 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| ISO Number | GIM 3-4LA IC354 |
| Manufacturers Catalog Number | 3355054 |
| Overall Width (mm) | 2.40 |
| Overall Width (Decimal Inch) | 0.0940 |
