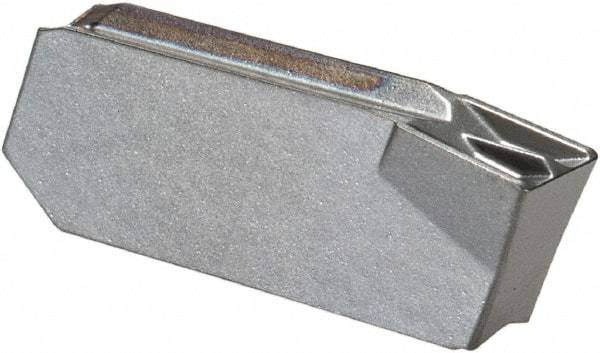

Iscar - 3GIM Grade IC328, 3mm Cutting Width Carbide Grooving Insert - Neutral, 0.25mm Corner Radius, TiN/TiCN/TiN Finish
Item #: 52714680
Brand: Iscar
Model #: 6402096
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | P45-K40 |
| Manufacturer's Grade | IC328 |
| Coating | TiN/TiCN/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Slitting; Slotting |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| ISO Number | GIM 3 |
| Manufacturers Catalog Number | GIM 3 |
