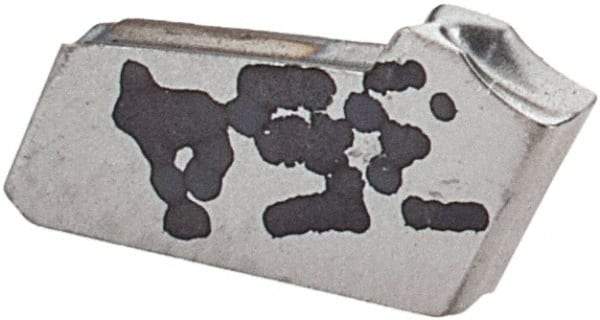

Iscar - GFN J IC354 Grade, 0.0472" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0055" Cnr Rad, TiCN Coated, Single End
Item #: 52710860
Brand: Iscar
Model #: 6002544
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.20 |
| Cutting Width (Decimal Inch) | 0.0472 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0055 |
| Corner Radius (mm) | 0.14 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | GFN 1.2J |
