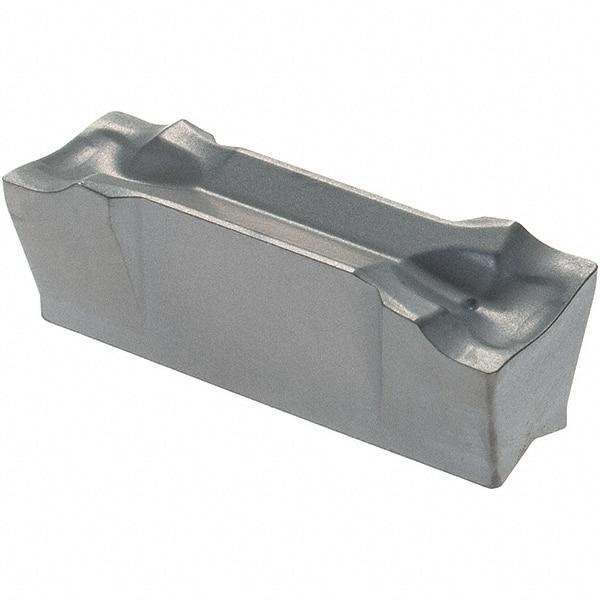

Iscar - DGN6303 J IC20 Grade, 0.25" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.014" Cnr Rad, Single End
Item #: 52700804
Brand: Iscar
Model #: 6002399
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 6303 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Cut-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Full Radius | No |
| Multi-Use Application | Facing; Grooving |
| Corner Radius (Decimal Inch) | 0.0140 |
| Corner Radius (mm) | 0.36 |
| Insert Hand | Neutral |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGN 6303J |
