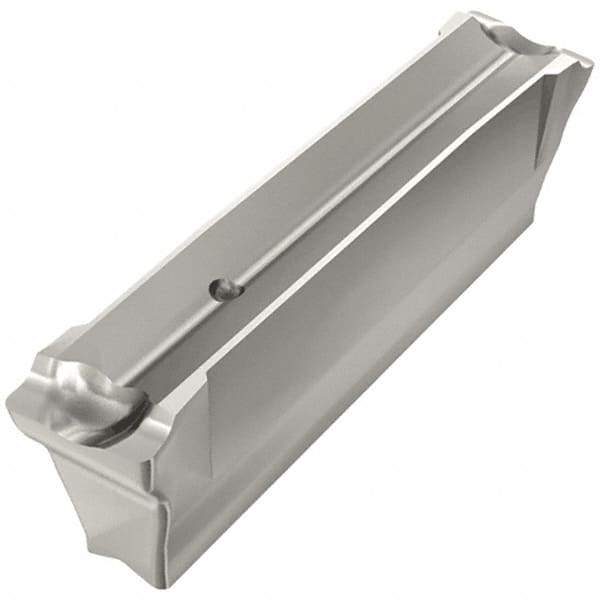

Iscar - DGN6008 IC308 Grade, 0.2362" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0315" Cnr Rad, TiCN Coated, Double End
Item #: 52700747
Brand: Iscar
Model #: 6002689
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 6008 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC308 |
| Coating | TiCN |
| Series | Do-Grip |
| Coating Process | PVD |
| Overall Length (mm) | 19.10 |
| Overall Length (Decimal Inch) | 0.7520 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Overall Width (mm) | 6.00 |
| Overall Width (Decimal Inch) | 0.2362 |
