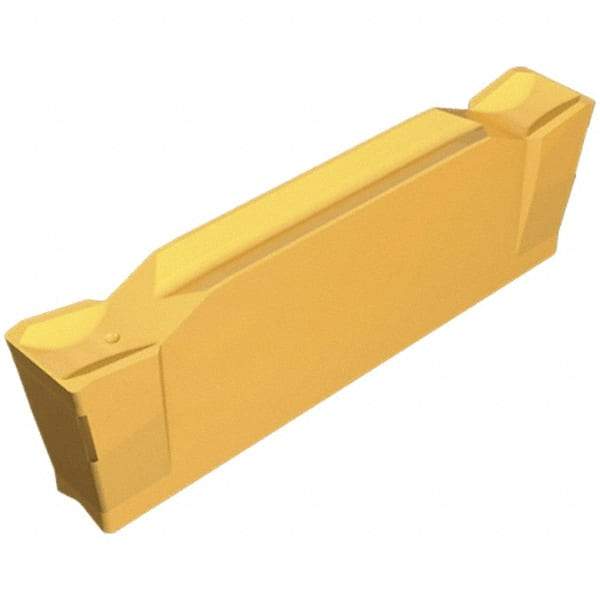

Iscar - DGN4003 IC30N Grade, 0.1575" Cutting Width, Cermet Cutoff Insert - Neutral Lead Angle, 0.0118" Cnr Rad, Double End
Item #: 52700556
Brand: Iscar
Model #: 6002530
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | DGN |
| Insert Size | 4003 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | C6/C7 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Series | Do-Grip |
| Overall Length (mm) | 18.80 |
| Overall Length (Decimal Inch) | 0.7402 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
