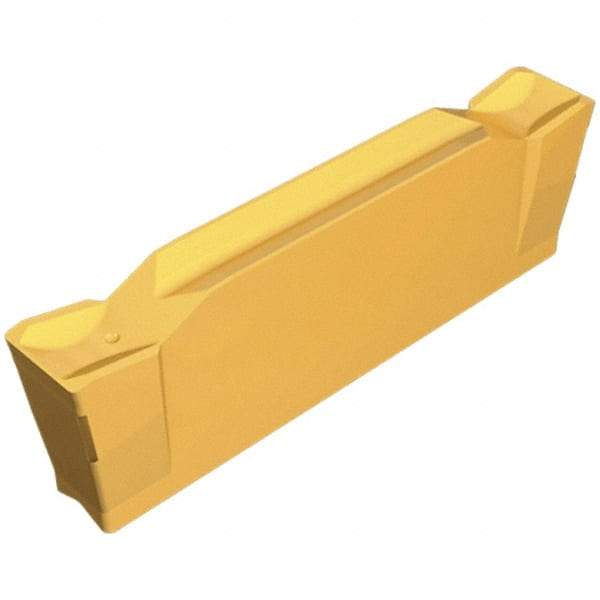

Iscar - DGN3102 IC30N Grade, 0.122" Cutting Width, Cermet Cutoff Insert - Neutral Lead Angle, 0.0079" Cnr Rad, Double End
Item #: 52700465
Brand: Iscar
Model #: 6002529
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | DGN |
| Insert Size | 3102 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | C6/C7 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Series | Do-Grip |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Overall Width (mm) | 3.10 |
| Overall Width (Decimal Inch) | 0.1220 |
