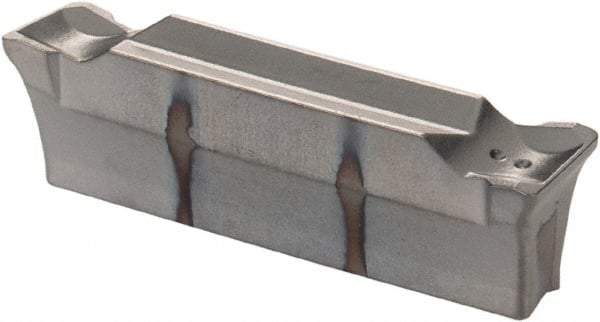

Iscar - DGL4003 C IC328 Grade, 0.157" Cutting Width, Carbide Cutoff Insert - 4° Left Hand Lead Angle, 0.012" Cnr Rad, TiN/TiCN/TiN Coated, Double End
Item #: 52700077
Brand: Iscar
Model #: 6002470
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGL |
| Insert Size | 4003 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 4 |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Material Grade | P45-K40 |
| Manufacturer's Grade | IC328 |
| Coating | TiN/TiCN/TiN |
| Series | Cut-Grip |
| Chipbreaker | C |
| Full Radius | No |
| Multi-Use Application | No |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGL 4003C-4D |
