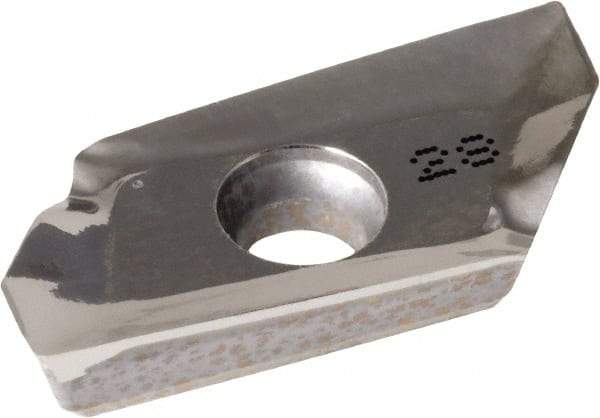

Iscar - APCR220605 HM Grade IC28 Carbide Milling Insert - Uncoated, 0.2362" Thick, 0.5mm Corner Radius
Item #: 52692837
Brand: Iscar
Model #: 5601133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APCR |
| Insert Size | 220605 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5472 |
| Length (Decimal Inch) | 1.1693 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Shape | Parallelogram |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Manufacturers Catalog Number | APCR 220605-HM |
