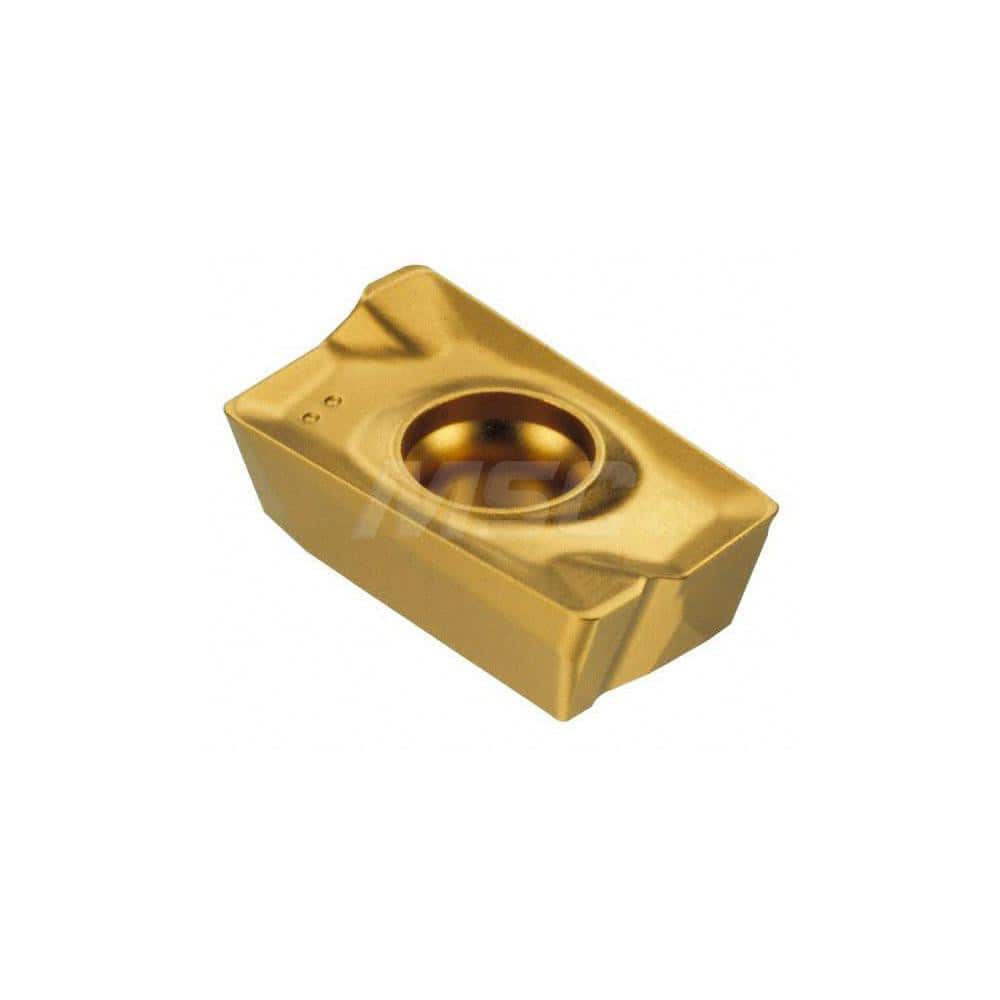

ADCT 1505PDFR-HM IC328 Carbide Milling Insert TiCN Finish, 0.6161″ Long x 0.222″ Thick x 0.3768″ Wide
Item #: 52691896
Brand: Iscar
Model #: 5601577
Product Specifications
| Insert Style | ADCT |
| Insert Size Code | 1505 |
| Insert Size | 1505 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C5; C6; C2 |
| Manufacturer Grade | IC328 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | HELIMILL |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 12.00 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | ADCT 1505PDFR-HM |
| Standards | ISO 13399 |
| Chip Breaker | HM |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3768 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2220 |
| Length (Decimal Inch - 4 Decimals) | 0.6161 |
