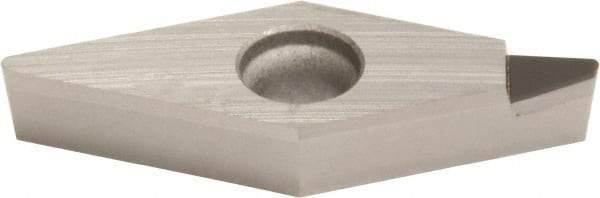

Sumitomo - NF-VCMX220 Grade DA1000 Polycrystalline Diamond (PCD) Turning Insert - 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.0039" Corner Radius
Item #: 52673266
Brand: Sumitomo
Model #: 16HQCAF
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | NF-VCMX |
| Insert Size | 220 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | DA1000 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 7 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
