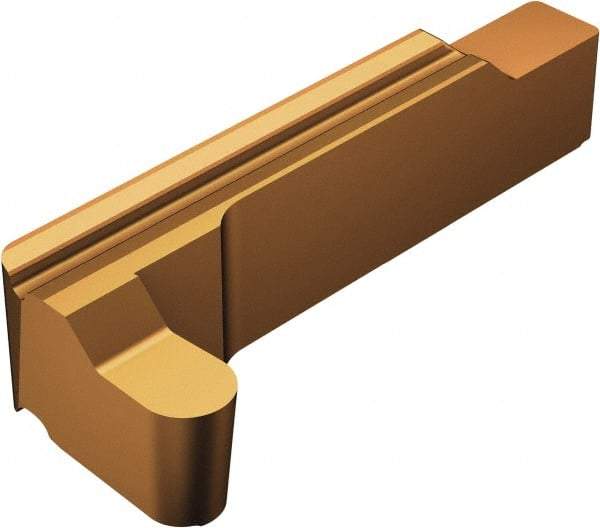

Sandvik Coromant - 06LG123.. RS 2mm Cutting Width Carbide Grooving Insert - 4.01mm Max Depth of Cut, Left Hand, 1mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 52670411
Brand: Sandvik Coromant
Model #: 5734047
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LG123.. |
| Insert Size | 06 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 4.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.1580 |
| Coating | TiAlN/AlCr2O3 |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | H |
| Chipbreaker | RS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.0060 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | LG123H1-0200-0010-RS 1115 |
| Manufacturers Catalog Number | LG123H1-0200-0010-RS 1115 |
| Overall Width (Decimal Inch) | 0.0790 |
| Insert Thickness (Decimal Inch) | 0.1713 |
