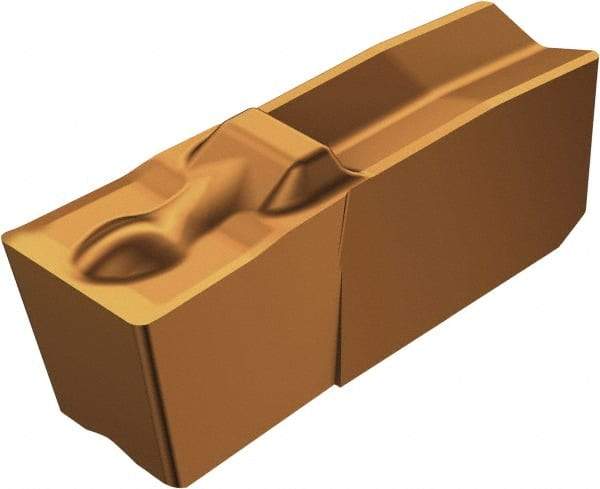

Sandvik Coromant - 20N151.3 4G Grade 1125, 2mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, TiAlN Finish
Item #: 52651189
Brand: Sandvik Coromant
Model #: 5737352
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 20 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.78 |
| Cutting Height (Decimal Inch) | 0.1883 |
| Relief Angle | 11 |
| Insert Seat Size | 20 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0059 |
| Maximum Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 4.43 |
| Overall Length (Decimal Inch) | 0.1744 |
| Series | T-Max Q-Cut |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N151.3-200-20-4G 1125 |
| Manufacturers Catalog Number | N151.3-200-20-4G 1125 |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
| Insert Thickness (Decimal Inch) | 0.1883 |
