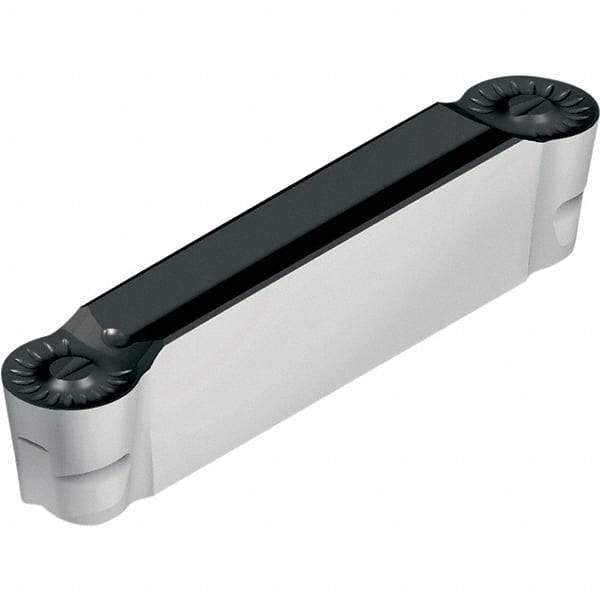

Walter - 4E600N300GX RF8 Grade WSM13S, 6mm Cutting Width Carbide Grooving Insert - Neutral, 3mm Corner Radius, TiAlN/Al2O3/ZrCN Finish
Item #: 52583606
Brand: Walter
Model #: 6166564
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 4E600N300 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Material Grade | P15/K15/S15 |
| Manufacturer's Grade | WSM13S |
| Coating | TiAlN/Al2O3/ZrCN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Chipbreaker | RF8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Grooving; Turning |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9449 |
| Series | Tiger-tec |
| ISO Number | GX24-4E600N300-RF8 |
| Manufacturers Catalog Number | GX24-4E600N300-RF8 |
