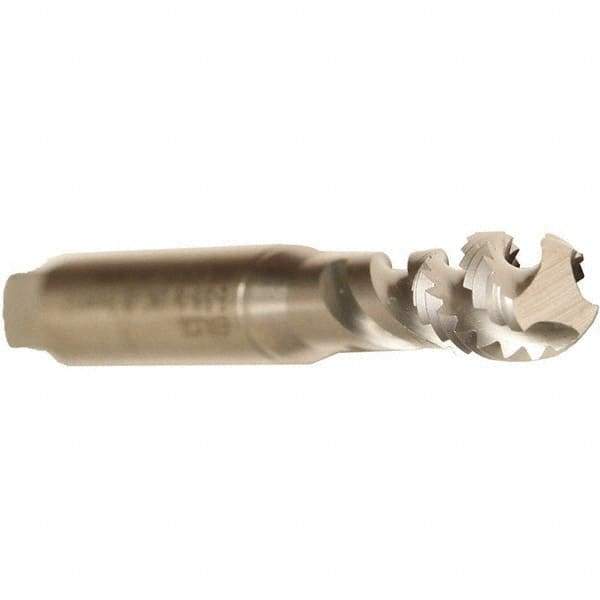

Emuge - M4x0.50 Metric Fine 3 Flute 6G Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 63mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 52282951
Brand: Emuge
Model #: B0513520.0210
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4x0.50 |
| Chamfer | Bottoming |
| Class of Fit | 6G |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 63.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Fine |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.1969 |
| Thread Length (mm) | 5.00 |
| Flute Type | Fast Spiral |
| Series/List | Enorm |
| Tapping Depth (Decimal Inch) | 0.8268 |
| Tapping Depth (mm) | 21.00 |
| Shank Diameter (Decimal Inch) | 0.1772 |
| Shank Diameter (mm) | 4.50 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42 |
| Material Application | Copper; Stainless Steel; Steel |
