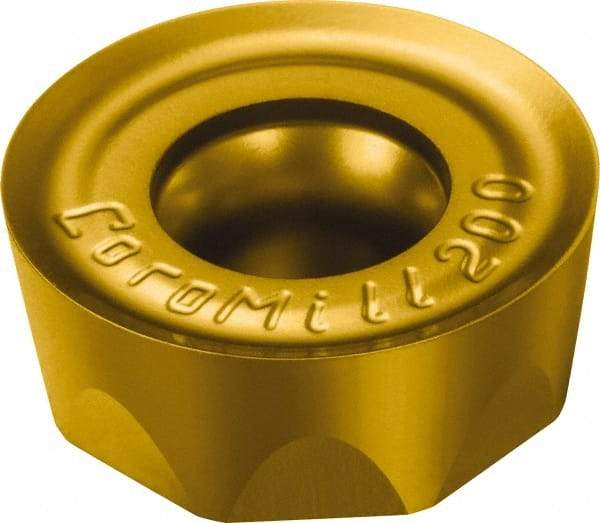

Sandvik Coromant - RCHT1606M0 PL Grade 1025 Carbide Milling Insert - TiCN/TiN Finish, 1/4" Thick, 16mm Inscribed Circle, 8mm Corner Radius
Item #: 52084449
Brand: Sandvik Coromant
Model #: 5740017
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 1606M0 |
| Material | Carbide |
| Manufacturer's Grade | 1025 |
| Coating | TiCN/TiN |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (mm) | 6.35 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Coating Process | PVD |
| Included Angle | 0 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 2.34 |
| Maximum Depth of Cut (Decimal Inch) | 0.0921 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RCHT 16 06 M0-PL 1025 |
