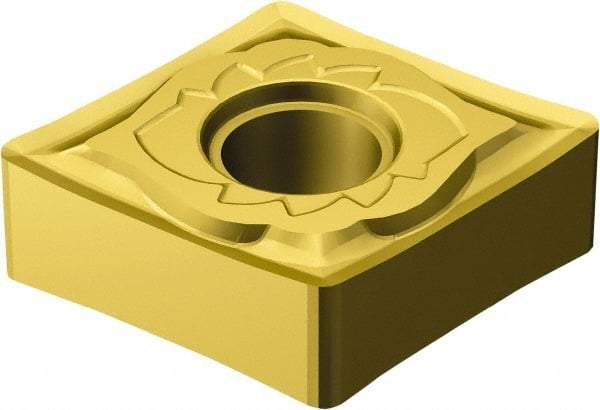

Sandvik Coromant - CNGG432 SGF Grade S05F Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 52082559
Brand: Sandvik Coromant
Model #: 5908963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGG |
| Insert Size | 432 |
| Material | Carbide |
| Length (mm) | 8.50 |
| Length (Decimal Inch) | 0.3346 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | S05F |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | SGF |
| Insert Length (Decimal Inch) | 0.3346 |
| OverallLength (mm) | 12.90 |
| Overall Length (Decimal Inch) | 0.5077 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNGG120408-SGF S05F |
| Relief Angle | 0 |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
