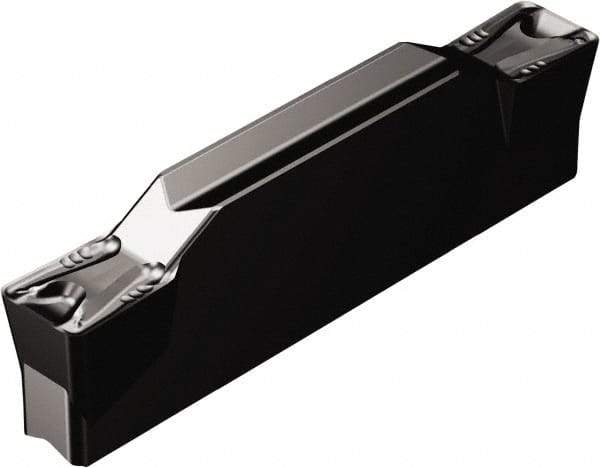

Sandvik Coromant - LN123 TM Grade 3115, 8mm Cutting Width Carbide Grooving Insert - 28mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3 Finish
Item #: 52078904
Brand: Sandvik Coromant
Model #: 5736932
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | L |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.05 |
| Cutting Height (Decimal Inch) | 0.2382 |
| Relief Angle | 7 |
| Insert Seat Size | L |
| Chipbreaker | TM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0276 |
| Maximum Corner Radius (Decimal Inch) | 0.0354 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | MT-CVD |
| Overall Length (mm) | 29.69 |
| Overall Length (Decimal Inch) | 1.1689 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123L2-0800-0008-TM 3115 |
| Manufacturers Catalog Number | N123L2-0800-0008-TM 3115 |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
| Insert Thickness (Decimal Inch) | 0.2382 |
