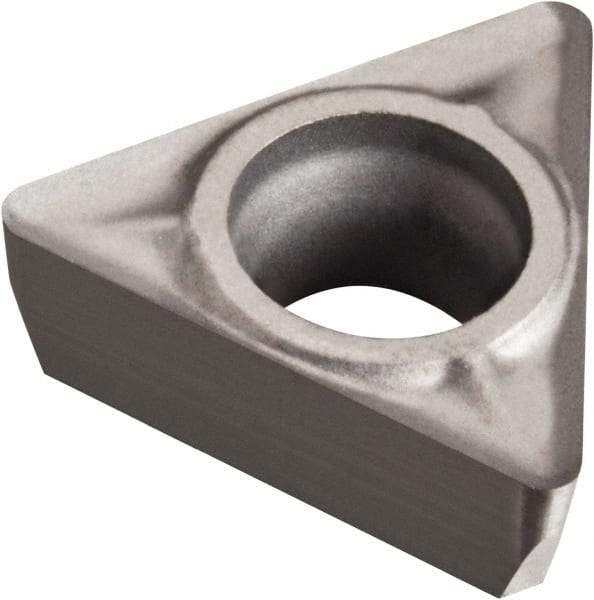

Sandvik Coromant - TCGX1.21.21 AL Grade H10 Carbide Turning Insert - Uncoated, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 52075801
Brand: Sandvik Coromant
Model #: 5751859
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGX |
| Insert Size | 1.21.21 |
| Material | Carbide |
| Length (mm) | 6.22 |
| Length (Decimal Inch) | 0.2449 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (mm) | 1.98 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Chip Breaker | AL |
| Insert Length (Decimal Inch) | 0.2449 |
| OverallLength (mm) | 6.62 |
| Overall Length (Decimal Inch) | 0.2606 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | TCGX 06 T1 04-AL H10 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
