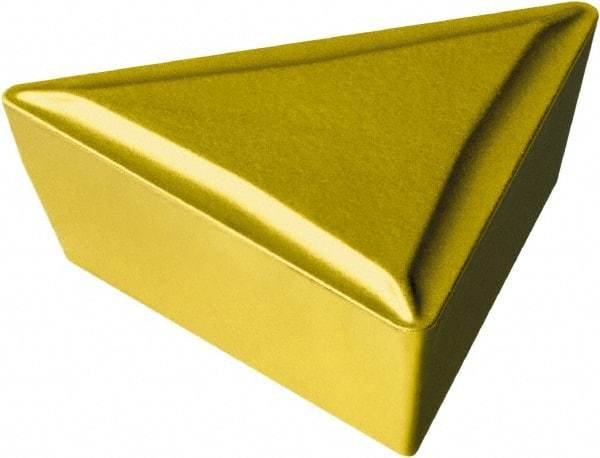

Sandvik Coromant - TPMR321 Grade 2025 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 52073806
Brand: Sandvik Coromant
Model #: 5755005
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 321 |
| Material | Carbide |
| Length (mm) | 16.10 |
| Length (Decimal Inch) | 0.6338 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/AI2O3/TiN |
| Insert Length (Decimal Inch) | 0.6338 |
| OverallLength (mm) | 16.50 |
| Overall Length (Decimal Inch) | 0.6495 |
| ISO Number | TPMR 16 03 04-53 2025 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
