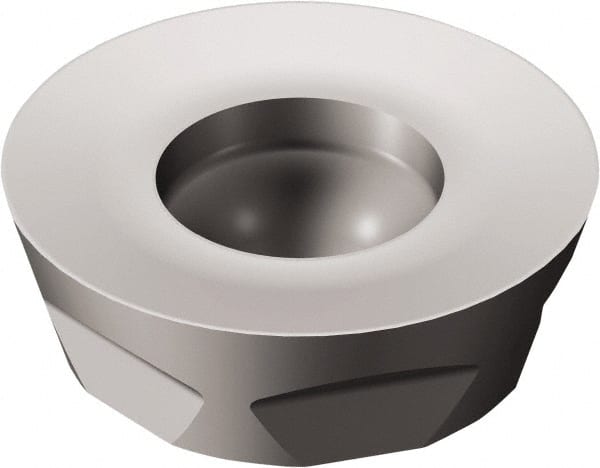

Sandvik Coromant - R300-1340E-ML 1040 Carbide Milling Insert
Item #: 52070745
Brand: Sandvik Coromant
Model #: 5888521
Product Specifications
| Insert Style | R300 |
| Insert Size | 1340 |
| Material | Carbide |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Corner Radius (mm) | 6.35 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Coating Process | PVD |
| Included Angle | 0 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | ML |
| Maximum Depth of Cut (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1252 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R300-1340E-ML 1040 |
