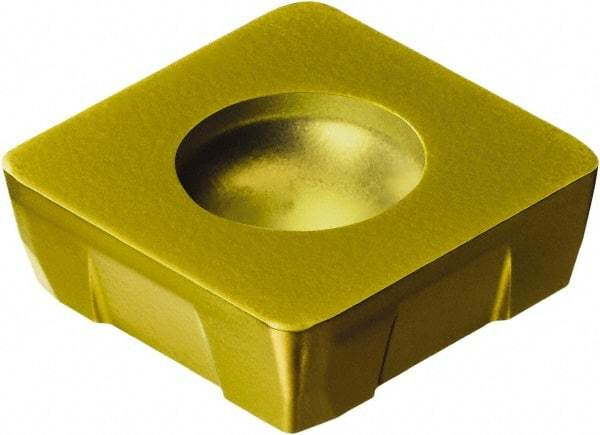

Sandvik Coromant - R210090412 KM Grade 1020 Carbide Milling Insert - TiAlN Finish, 4mm Thick, 9.4mm Inscribed Circle, 1mm Corner Radius
Item #: 52070612
Brand: Sandvik Coromant
Model #: 5742581
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R210 |
| Insert Size | 090412 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Length (mm) | 6.20 |
| Inscribed Circle (mm) | 9.40 |
| Inscribed Circle (Decimal Inch) | 0.3701 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 4.20 |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 1.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0433 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R210-09 04 12M-KM 1020 |
