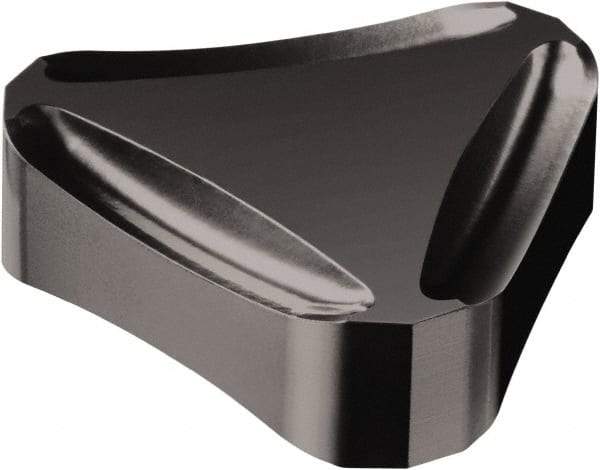

Sandvik Coromant - TNEF1204 CA Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 3/16" Thick, 1/2" Inscribed Circle, 3mm Corner Radius
Item #: 52070133
Brand: Sandvik Coromant
Model #: 5753266
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNEF |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Length (mm) | 12.00 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Rake Angle | 12 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Neutral |
| Chipbreaker | CA |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TNEF 12 04 AN-CA 3040 |
