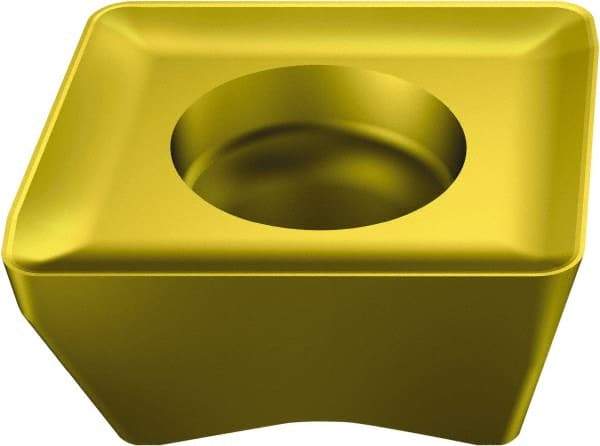

Sandvik Coromant - 690100516 SL Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.2mm Thick, 0.394" Inscribed Circle, 1.6mm Corner Radius
Item #: 52070091
Brand: Sandvik Coromant
Model #: 5853417
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 690 |
| Insert Size | 100516 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 10.00 |
| Width (Decimal Inch) | 0.3937 |
| Length (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | SL |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 690-100516M-E-SL S40T |
