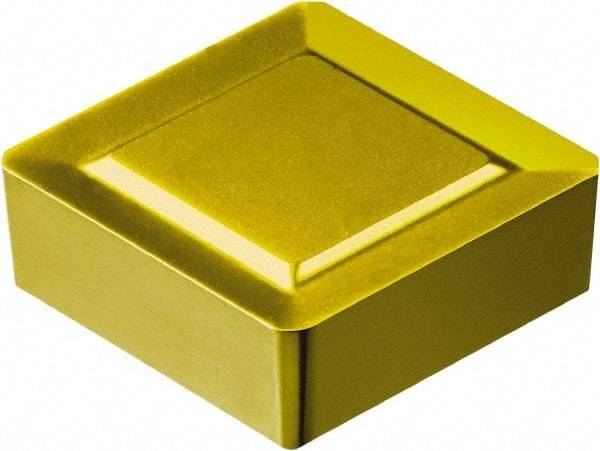

Sandvik Coromant - SBEX1204 ZZ-11 Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 0.5mm Corner Radius
Item #: 52069937
Brand: Sandvik Coromant
Model #: 5748827
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SBEX |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 8.00 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Rake Angle | 8 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | ZZ-11 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SBEX 12 04 ZZ-11 K20W |
