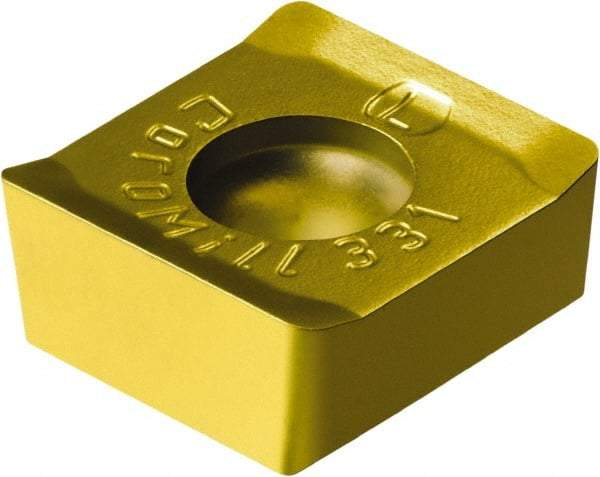

Sandvik Coromant - N331.1A043505 KL Grade 1020 Carbide Milling Insert - TiAlN Finish, 3.5mm Thick, 0.2" Inscribed Circle, 0.5mm Corner Radius
Item #: 52069689
Brand: Sandvik Coromant
Model #: 5738451
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 043505 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Length (mm) | 4.60 |
| Inscribed Circle (Decimal Inch) | 0.2000 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Hole Diameter (mm) | 2.60 |
| Hole Diameter (Decimal Inch) | 0.1024 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | KL |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | N331.1A-04 35 05E-KL1020 |
