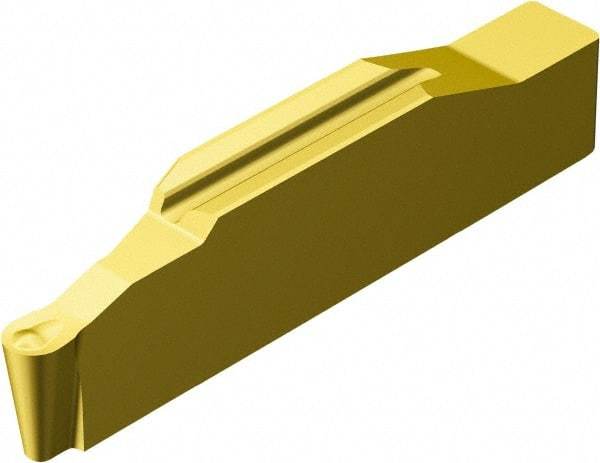

Sandvik Coromant - 0.5L123H1-0200 RO 2mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Left Hand, 1mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 52068525
Brand: Sandvik Coromant
Model #: 6256908
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | L123H1-0200 |
| Insert Size | 0.5 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Left Hand |
| Insert Seat Size | H |
| Chipbreaker | RO |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | MT-CVD |
| Overall Length (mm) | 25.05 |
| Overall Length (Decimal Inch) | 0.9860 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | L123H1-0200-RO S05F |
| Manufacturers Catalog Number | L123H1-0200-RO S05F |
| Overall Width (Decimal Inch) | 0.0790 |
