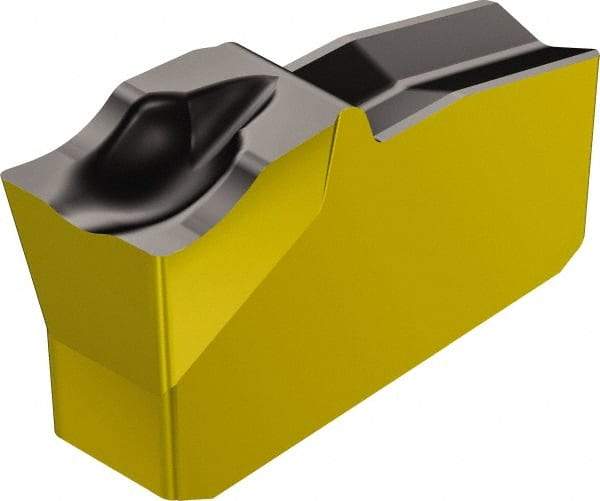

Sandvik Coromant - L151.240 5E 4225 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - 0° Left Hand Lead Angle, 0.0079" Cnr Rad, TiCN/Al2O3/TiN Coated
Item #: 52068418
Brand: Sandvik Coromant
Model #: 5733723
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L151.2 |
| Insert Size | 40 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 0 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 4225 |
| Coating | TiCN/Al2O3/TiN |
| Series | T-Max Q-Cut |
| Relief Angle | 7 |
| Chipbreaker | 5E |
| Full Radius | No |
| Multi-Use Application | Yes |
| Coating Process | MTCVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.2 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | 40 |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
| Manufacturers Catalog Number | L151.2-400 05-5E 4225 |
