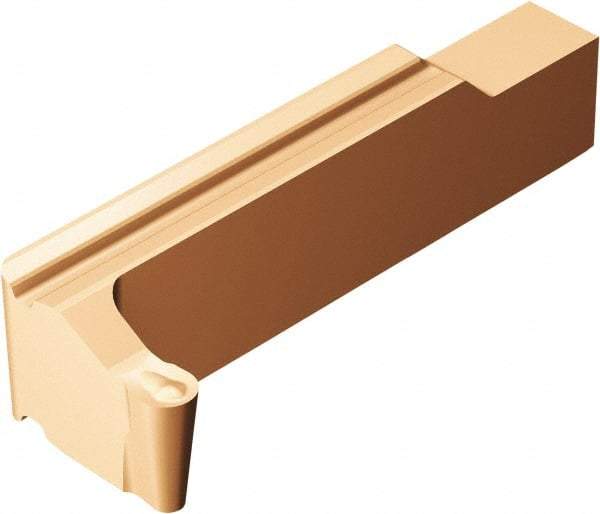

Sandvik Coromant - X1LG123.. RO 3mm Cutting Width Carbide Grooving Insert - 9mm Max Depth of Cut, Left Hand, 1.5mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 52068350
Brand: Sandvik Coromant
Model #: 6285756
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LG123.. |
| Insert Size | X1 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Coating | TiAlN/AlCr2O3 |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | L |
| Chipbreaker | RO |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Overall Length (mm) | 30.60 |
| Overall Length (Decimal Inch) | 1.2050 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | LG123L1-0300-RO 1115 |
| Manufacturers Catalog Number | LG123L1-0300-RO 1115 |
| Overall Width (mm) | 3.00 |
| Insert Thickness (Decimal Inch) | 0.1713 |
