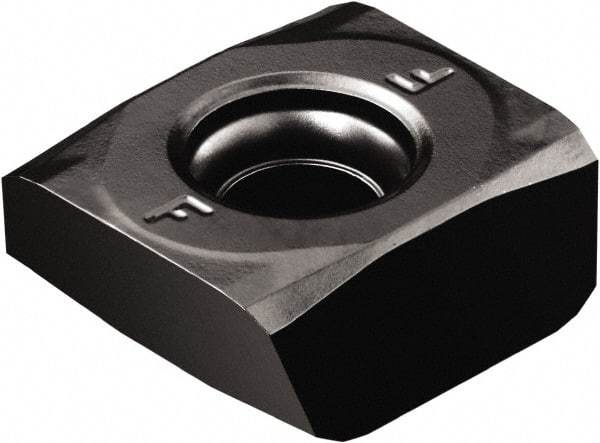

Sandvik Coromant - N260.81204 F Grade 3020 Carbide Milling Insert - TiCN/Al2O3 Finish, 1/2" Thick, 3/16" Inscribed Circle, 1.8mm Corner Radius
Item #: 52066180
Brand: Sandvik Coromant
Model #: 5737000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N260.8 |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | 3020 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 4.76 |
| Width (Decimal Inch) | 0.1875 |
| Length (mm) | 1.00 |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Thickness (mm) | 12.70 |
| Thickness (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0709 |
| Corner Radius (mm) | 1.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Coating Process | MTCVD |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | F |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | N260.8-1204-F 3020 |
