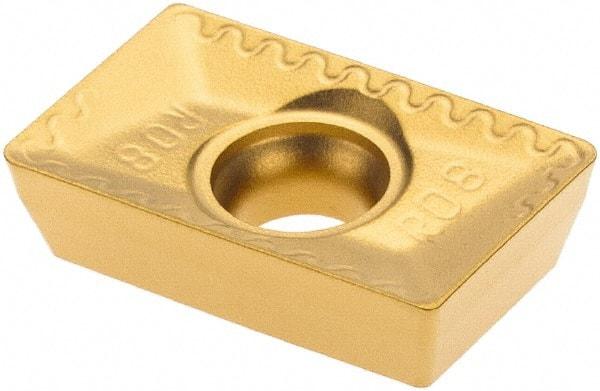

Sandvik Coromant - R215.4415T308 WL Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 3.96mm Thick, 0.374" Inscribed Circle, 0.8mm Corner Radius
Item #: 52066107
Brand: Sandvik Coromant
Model #: 5742760
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R215.44 |
| Insert Size | 15T308 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.3740 |
| Thickness (mm) | 3.96 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Corner Radius (mm) | 0.80 |
| Coating Process | CVD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | WL |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R215.44-15T308M-WL 235 |
